Soldering stainless steel is possible, but it is not as straightforward as soldering copper or other common metals. A frequent question is: Can You Solder Stainless Steel with a Soldering Iron? The answer depends on factors such as the alloy, surface preparation, flux selection, and the heat output of the soldering iron.
Stainless steel naturally forms a tough oxide layer that resists solder adhesion, making joint quality a common challenge.
Understanding the limitations and requirements of the process is important in fabrication, repair, electrical work, and light metal assembly. Poor wetting, insufficient heat, or improper flux can lead to weak joints, premature failure, and costly rework.
Knowing when a soldering iron is suitable—and when alternative joining methods may be more effective—helps improve reliability and efficiency. I’ll explain the key considerations, practical limitations, and techniques needed to achieve successful results when soldering stainless steel.

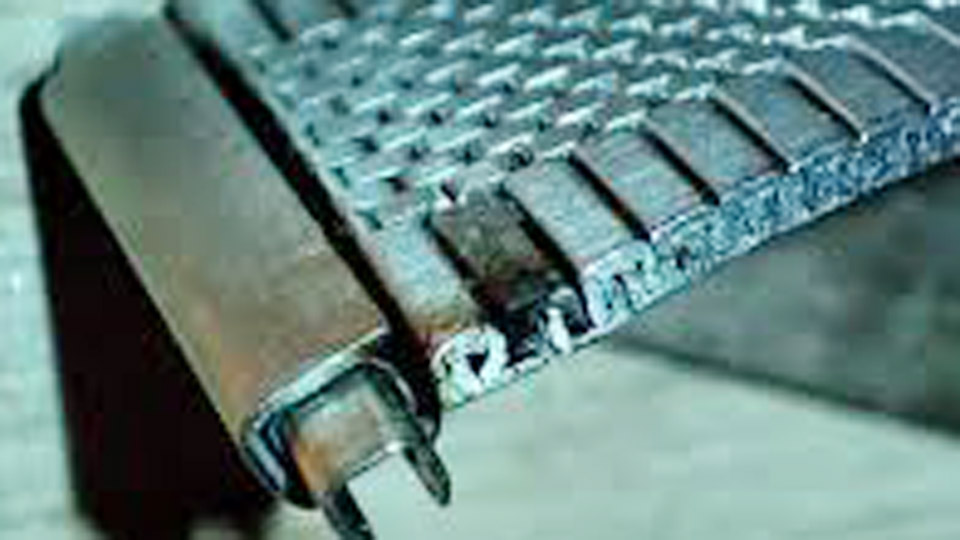

Image by r/soldering
Understanding Stainless Steel Soldering Challenges
The Chromium Oxide Barrier
Stainless steel forms a passive chromium oxide layer that provides corrosion resistance but blocks standard solder wetting. Conventional rosin or no-clean fluxes cannot penetrate this layer effectively, leading to cold joints or no adhesion at all. Phosphoric acid-based or specialized high-activity acid fluxes are required to chemically reduce the oxides and allow solder flow.
This oxide reforms quickly when heated, so timing and flux application become critical. Grades like 304 and 316 respond differently due to varying nickel and chromium content, with higher-alloy variants often demanding stronger fluxes or additional mechanical abrasion.
Thermal Conductivity Differences
Stainless steel conducts heat far more slowly than copper or mild steel—roughly 28 times slower in some comparisons. Heat from a soldering iron concentrates locally, risking localized overheating, warping, or insufficient joint heating on larger pieces. This poor conductivity requires patience and often supplemental heat sources beyond basic irons.
When a Soldering Iron Works for Stainless Steel
Suitable Applications and Limitations
A standard or high-wattage soldering iron (80W+) succeeds on thin stainless sheets, small wires, jewelry, or electronic housings where joint mass remains low. For plumbing fittings, automotive sensors, or structural brackets, a torch usually provides better results due to even heating.
Decision factors:
- Material thickness under 1/16 inch (1.6 mm)
- Joint area small enough for iron tip contact
- Non-critical structural loads
- Post-joint cleaning feasible
Larger fabrications shift preference toward TIG welding for superior strength and corrosion resistance.
Iron Selection and Temperature Control
Choose irons with adjustable temperature or high thermal mass tips. Target 650–800°F (343–427°C) at the joint for most tin-silver solders. Temperature-controlled stations maintain consistency better than unregulated guns. Heavy-duty roofing irons or those with broad chisel tips distribute heat more effectively on stainless.
Essential Materials for Successful Soldering
Flux Selection
Standard fluxes fail here. Use phosphoric acid-based fluxes or products formulated specifically for stainless, such as Superior No. 71 or equivalents. These aggressively remove oxides without excessive base metal attack when cleaned promptly. Acid fluxes suit mechanical applications but require complete residue removal to prevent long-term corrosion.
Avoid mixing fluxes or relying on cored solder alone—supplemental paste or liquid flux improves results on stubborn surfaces.
Solder Alloys
Silver-bearing solders perform best. Common choices include:
- Sn96/Ag4 (96% tin, 4% silver) for lead-free applications
- Sn45/Pb54/Ag1 where lead is permissible
- Specialized low-temp options like Stay-Brite (around 430°F flow)
Higher silver content enhances wetting, strength, and ductility while matching stainless appearance better. Tin content above 50% minimizes galvanic corrosion risks in service.
| Solder Type | Composition Example | Flow Temp (°F) | Best For | Notes |
|---|---|---|---|---|
| Tin-Silver | Sn96/Ag4 | ~430–500 | General stainless | Lead-free, strong |
| Tin-Lead-Silver | Sn45/Pb54/Ag1 | Lower | Non-food | Good flow |
| High-Silver | 40%+ Ag | Higher | Critical joints | Brazing-like strength |
Surface Preparation Techniques
Mechanical and Chemical Cleaning
Thorough cleaning determines success more than heat application. Abrade surfaces with 120–220 grit emery cloth or a stainless wire brush to break the oxide layer. Follow with degreasing using acetone or isopropyl alcohol. Avoid contaminating with carbon steel tools.
Apply flux immediately after cleaning, as oxides reform rapidly in air. Pre-tinning both surfaces separately often yields stronger final joints by ensuring initial wetting before assembly.
Jigging and Fit-Up
Maintain tight joint fit-up (0.002–0.005 inch gap) for capillary action. Use fixtures or clamps to hold alignment during heating, as stainless expands and contracts differently under localized heat.
Step-by-Step Soldering Process with Iron
- Clean and flux both surfaces generously.
- Pre-tin each piece individually by heating and applying solder until it flows.
- Assemble parts, apply additional flux to the joint.
- Heat the joint evenly with the iron, allowing the base metal to reach temperature before adding more solder.
- Feed solder into the joint until it flows fully and forms a concave fillet.
- Remove heat and allow natural cooling—do not quench.
- Clean flux residues immediately with hot water, baking soda solution, or manufacturer-recommended neutralizer.
Monitor for proper wetting: solder should spread smoothly rather than balling up.
Comparing Soldering to Alternative Joining Methods
Soldering vs. Brazing
Brazing uses higher temperatures (above 840°F) and stronger fillers, producing joints with greater mechanical strength suitable for pressure or load-bearing applications. Soldering remains preferable for heat-sensitive parts or when distortion must stay minimal.
Soldering vs. TIG Welding
TIG delivers full-penetration, corrosion-resistant joints matching or exceeding base metal properties. It requires more skill and equipment but eliminates flux-related corrosion concerns. Reserve soldering for non-structural, low-heat needs or field repairs where welding equipment is unavailable.
Common Failure Modes and Technical Fixes
Poor Wetting and Cold Joints
Caused by insufficient flux activity, low temperature, or contamination. Increase flux aggression or pre-tin more aggressively. Verify iron tip temperature with a thermocouple rather than relying on dial settings.
Cracking or Weak Joints
Differential thermal expansion or inadequate cleaning leads to this. Use silver-enhanced solders for better ductility. Design joints with mechanical reinforcement (overlap or interlocking) where possible.
Corrosion After Soldering
Flux residues drive this issue. Always neutralize and rinse thoroughly. In aggressive environments (marine, food contact), consider post-soldering passivation or protective coatings.
Advanced Considerations for Professional Results
Alloy-Specific Adjustments
Austenitic grades (300 series) solder more readily than ferritic or martensitic. High-molybdenum alloys like 316 may need slightly higher heat or specialized fluxes. Test on scrap whenever working with unfamiliar grades.
Heat Management Strategies
For borderline iron applications, preheat the workpiece gently with a secondary heat source or use a large copper block as a heat sink/transfer aid. Pulse heating prevents overheating thin sections while building temperature in thicker areas.
Post-Processing and Inspection
Visually inspect for uniform fillet and absence of porosity. Dye penetrant testing reveals surface defects on critical joints. Measure joint strength on sample pieces matching the actual application before committing to production.
Final Thoughts
Successful stainless soldering with an iron ultimately hinges on matching flux aggression, solder composition, and heat input to the specific alloy and joint geometry. Professionals evaluate each project against service demands: when strength, corrosion resistance, or high temperatures matter, TIG welding remains superior.
For quick, low-distortion repairs on compatible pieces, the right combination of materials and technique delivers durable results that extend equipment life without full welding setups. Mastering these parameters separates functional repairs from frustrating failures in the workshop.
FAQ
Is soldering stainless steel as strong as welding?
No. Soldered joints offer lower shear and tensile strength than TIG or MIG welds. They suit non-structural applications or where service temperatures remain below solder remelt points.
Can regular electronics solder and flux work on stainless?
Rarely. Standard rosin fluxes lack the activity needed to break chromium oxides. Specialized stainless fluxes and silver-bearing solders are almost always required.
What temperature should my soldering iron be for stainless steel?
Aim for 650–800°F (343–427°C) at the joint. Higher wattage irons or torch assistance help achieve and maintain this on stainless due to its low thermal conductivity.
Does soldering stainless steel affect corrosion resistance?
It can if flux residues remain or if the joint creates galvanic couples. Proper cleaning and neutral pH passivation restore much of the original resistance. Silver solders generally perform better long-term.
