You’ve just dialed in 200 amps on a new MIG welder for a structural repair, laid down a solid bead for two straight minutes, and suddenly the thermal overload trips. The machine shuts down mid-pass, forcing a frustrating cooldown while your project sits half-finished.
This common scenario highlights a critical but often misunderstood specification: duty cycle. Understanding what is duty cycle when specifying welding machine ratings directly determines whether a welder will keep up with your workflow or leave you waiting.
Duty cycle defines the percentage of time a welding power source can operate at a specified amperage output within a standard 10-minute period before overheating. It measures the machine’s thermal capacity and heat dissipation limits under load.
For DIY welders, hobbyists, students, and professionals, this rating separates machines suited for occasional repairs from those built for sustained production. Ignoring it leads to interrupted welds, reduced productivity, and potential long-term damage to the equipment.

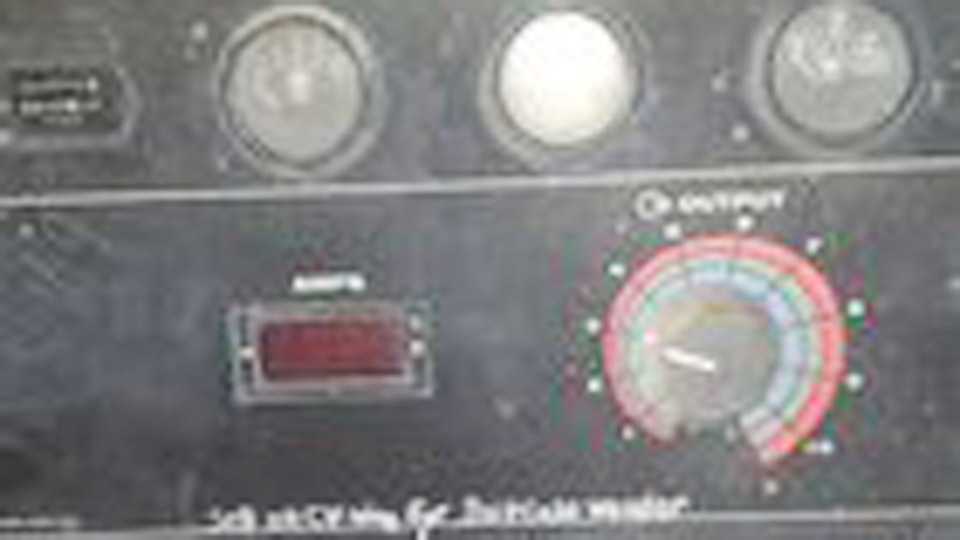

Image by r/Welding
Understanding Duty Cycle Ratings in Welding Machines
Core Definition and the 10-Minute Standard
Duty cycle is expressed as a percentage tied to a 10-minute test cycle, the industry benchmark. A 60% duty cycle at 200 amps means the machine can deliver that output for 6 minutes continuously, followed by 4 minutes of cooling within every 10-minute window. This prevents insulation breakdown, component failure, and inconsistent arc performance.
Ratings always reference a specific amperage and voltage because heat generation scales with output power. Manufacturers test under controlled conditions, typically following standards like EN60974-1, at elevated ambient temperatures (often 40°C) to simulate demanding real-world use.
A machine might claim 300 amps at 60% duty cycle, but that figure applies only at the rated load—not maximum output.
How Duty Cycle Relates to Amperage and Heat Buildup
Higher amperage increases internal heat exponentially. The relationship follows an inverse square law approximation: lowering the welding current significantly extends available duty cycle. For instance, a machine rated 30% at 215 amps might achieve 60% or higher at 150 amps, and potentially 100% at very low outputs.
This occurs because resistive losses (I²R heating) in transformers, rectifiers, and wiring drop sharply with reduced current. Practical implication: for thin sheet metal repairs at 80-120 amps, even entry-level machines often run near-continuously. Heavy plate work at 250+ amps demands careful attention to the published curve.
Reading and Interpreting Duty Cycle Specifications
Duty Cycle Charts and Machine Labeling
Most quality welders include a duty cycle chart in the manual or on the unit itself. Locate your intended amperage on the x-axis, trace to the relevant process (MIG, Stick, TIG), and read the corresponding percentage. Some advanced machines, like certain Miller models, display real-time data or Auto-Set integrations that factor this in.
Always verify the exact conditions: input voltage (120V vs. 240V affects output capability), process, and whether the rating is for a cold start or pre-heated machine. Dual-voltage units often show different ratings at each input.
Comparing Ratings Across Manufacturers
Not all ratings are equal. European and Australian standards emphasize rigorous 10-minute testing at high ambient temperatures, while some budget imports may use optimistic 5-minute cycles or lower test temps. Cross-reference multiple sources and look for third-party verification.
A machine listing “200A @ 30%” should be scrutinized against competitors offering similar output with 40-50% ratings under comparable conditions.
Duty Cycle Across Welding Processes
MIG Welding and Continuous Operation Demands
MIG (GMAW) and flux-cored processes allow long, uninterrupted runs due to automatic wire feeding. This makes duty cycle more critical. A hobby MIG setup for occasional fabrication might suffice with 20-40% at peak amperage, but production work on 1/4-inch+ steel benefits from 60%+ ratings to minimize downtime.
At 180-220 amps for medium plate, expect real-world arc times limited by the rating. Spool guns or longer torches add slight heat, further influencing performance.
Stick (SMAW) and TIG (GTAW) Considerations
Stick welding involves frequent electrode changes, slag chipping, and setup pauses, naturally lowering actual arc time percentage. A 30-40% duty cycle at rated output often proves adequate even for semi-professional use, as “on” time rarely exceeds 20-30% of the workday.
TIG demands precision and filler control, typically involving shorter bursts on thinner materials or detailed work. Many TIG applications run at lower amperages (100-150A), where machines frequently achieve 100% duty cycle. Water-cooled torches and high-end inverters further extend capability for critical applications like stainless or aluminum.
Calculating and Estimating Duty Cycle for Your Work
Basic Formula and Real-World Application
Duty cycle (%) = (Actual arc time / 10 minutes) × 100. Track your welding time over several cycles to assess if you’re pushing limits. For a project requiring 4 minutes of continuous MIG at 180 amps on a 40% rated machine (4 minutes max), you must incorporate mandatory cooldowns.
Adjusting for Lower Amperage (Inverse Square Approximation)
Use this practical formula to estimate:
Adjusted Duty Cycle (%) ≈ Rated Duty Cycle × (Rated Amps / Actual Amps)²
Example: Machine rated 60% at 200A. At 150A: (200/150)² × 60% ≈ 1.78 × 60% ≈ 106% (capped at 100%). This shows substantial headroom for lighter work.
Project-Based Duty Cycle Planning
For a 10-foot fillet weld on 3/8-inch steel (MIG at ~200A, travel speed ~8-10 ipm), estimate arc time per pass. Multiple passes or long seams require higher-rated machines.
Hobbyists fabricating gates or trailers might average 1-2 minutes arc time per joint with natural breaks, fitting lower duty cycle units. Professionals doing pipeline repair or heavy fabrication need 60-80%+ ratings to maintain efficiency.
| Amperage Range | Typical Duty Cycle Need (Hobby/DIY) | Typical Duty Cycle Need (Professional) | Example Applications |
|---|---|---|---|
| 80-150A | 30-60% | 60-100% | Sheet metal, auto body, light fab |
| 150-220A | 40-60% | 60-80% | Medium structural, repairs |
| 220A+ | 50%+ | 80%+ | Heavy plate, production |
Factors Influencing Real-World Duty Cycle Performance
Ambient Temperature and Environment
Ratings assume 40°C (104°F) ambient. In hotter shops or outdoor summer conditions, effective duty cycle drops noticeably as cooling efficiency decreases. Conversely, cool garages allow exceeding published figures safely. Ventilation, machine placement (avoid enclosed spaces), and regular filter cleaning maintain performance.
Machine Design and Cooling Systems
Inverter technology generally offers better duty cycles than older transformer machines due to higher efficiency and lower internal heat. Fan-cooled designs vary in airflow; larger fans, heatsinks, and thermal sensors improve resilience.
Over time, dust accumulation reduces cooling, lowering effective duty cycle—annual deep cleaning is essential for sustained output.
Input Power and Voltage Stability
Running on 120V vs. 240V often reduces maximum output and duty cycle. Voltage sags under load (long extension cords, weak generators) increase internal stress. Stable, dedicated circuits maximize ratings.
Choosing the Right Duty Cycle for Your Needs
Matching Machine to Workflow Intensity
Assess your typical arc time percentage. Hobbyists doing weekend projects rarely need industrial 80-100% ratings. A 30-40% machine at required amperage handles most home/shop tasks efficiently. Professionals or those tackling larger jobs should target 60%+ to avoid frequent interruptions.
Consider future-proofing: buy slightly more capacity than current needs. A machine with headroom at your common amperage delivers higher effective duty cycle and longevity.
Budget vs. Performance Trade-offs
Entry-level machines often prioritize peak amperage over duty cycle. Mid-range inverters balance both. Heavy-duty units cost more upfront but reduce frustration and downtime. Evaluate total cost of ownership: frequent cooldowns waste time and wear components through thermal cycling.
Maintaining Optimal Duty Cycle Performance
Focus on preventive practices specific to thermal management. Monitor the machine’s temperature during use. Allow full cooldown after thermal trips before resuming.
Use appropriate duty-rated extension cords and avoid overloading circuits. For multi-process machines, note that ratings differ by process—stick often allows higher outputs due to intermittent use.
Advanced users track session data to optimize parameters: adjust wire speed, voltage, and travel speed to balance heat input and productivity without exceeding limits.
Wrapping Up
Duty cycle is a practical decision-making tool, not just a number on the spec sheet. Selecting a welder with the appropriate rating for your amperage needs, process, and workflow ensures consistent arc performance, minimizes interruptions, and maximizes equipment life.
The most advanced insight comes from treating duty cycle as dynamic: pair machine capability with operator technique—optimizing parameters, incorporating natural pauses, and maintaining the system—to achieve productivity that exceeds published ratings in real fabrication environments. This technical awareness separates adequate setups from truly efficient ones.
FAQ
What does a 30% duty cycle mean for a welding machine?
It means the machine can weld at the rated amperage for 3 minutes out of every 10-minute period, then requires 7 minutes to cool. At lower amperages, this extends significantly.
How does duty cycle change with amperage?
Duty cycle increases as amperage decreases, roughly following an inverse square relationship. Operating well below the rated output often allows near-continuous use (100% effective duty cycle).
Is higher duty cycle always better for hobby welders?
Not necessarily. For occasional use with natural breaks, a moderate rating at sufficient amperage is often more cost-effective than paying for industrial-level continuous output.
Can you exceed the duty cycle rating safely?
Occasional short overruns may not cause immediate failure, but repeated exceedance risks overheating, reduced lifespan, and voided warranties. Respect the ratings for reliable performance.
What duty cycle is recommended for professional fabrication?
Aim for 60-80% or higher at your primary operating amperage to support extended production without excessive downtime.
