Choosing the correct Aluminum Welding Wire Size Chart is more than matching filler metal to base material—it directly affects arc stability, penetration, deposition rate, and overall weld quality. Using the wrong wire diameter can lead to burn-through on thin aluminum, lack of fusion on thicker sections, excessive spatter, feeding problems, and unnecessary rework.
Wire size must also be matched with material thickness, welding process, amperage range, and shielding gas to achieve consistent results.
Whether you’re performing MIG production welding, fabrication, or repair work, understanding these relationships helps improve weld integrity and equipment efficiency.
I’ll explain how aluminum welding wire sizes are classified, when each diameter should be used, and the key factors that influence proper wire selection for reliable, high-quality welds.

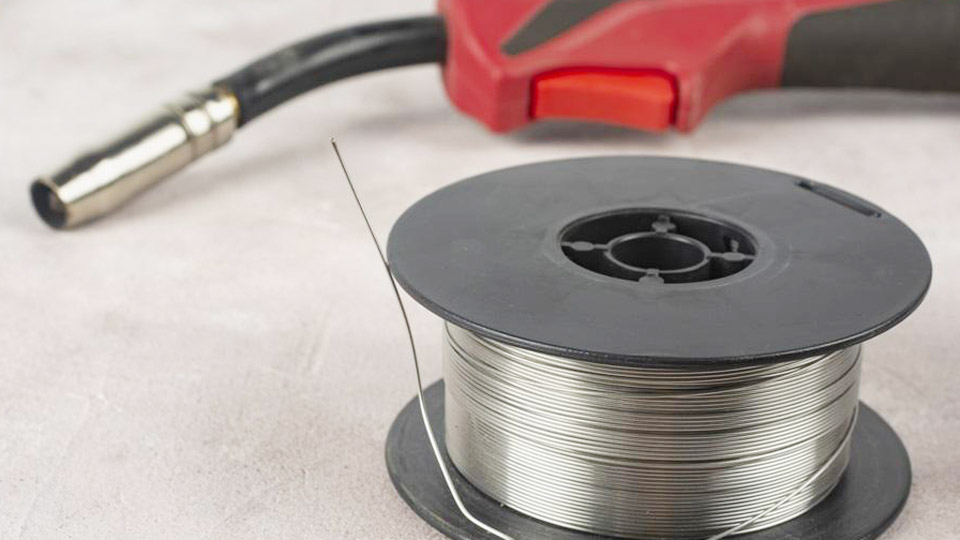

Image by thefabricator
Why Aluminum Wire Size Matters More Than Steel
Aluminum conducts heat rapidly and has a lower melting point than steel, so wire diameter controls deposition rate, heat input, and puddle control more critically. Too small a wire requires excessively high wire feed speeds that overwhelm the arc and cause instability.
Too large a wire demands high amperage that risks distortion or burn-through. Proper sizing balances these factors while matching alloy characteristics—ER4043 flows easily for castings and 6XXX series, while ER5356 offers higher strength for 5XXX marine applications.
MIG Welding Aluminum Wire Size Selection Chart
Common MIG aluminum wire diameters include 0.030″ (0.8 mm), 0.035″ (0.9 mm), 3/64″ (0.047″, 1.2 mm), and 1/16″ (0.062″, 1.6 mm). Selection depends on material thickness, joint type, position, and welder output.
Wire Size vs. Material Thickness Guidelines
0.030″ (0.8 mm): Best for material 0.030″–0.125″ (up to about 1/8″). Suitable for thin auto body panels, tanks, and light fabrication where low heat input prevents distortion. Requires precise machine settings and often a spool gun for reliable feeding due to softness.
0.035″ (0.9 mm): Versatile general-purpose size for 0.060″–0.250″ (1/16″–1/4″). Handles most hobbyist and light professional work effectively. Easier to feed than 0.030″ while still allowing spray transfer on mid-range thicknesses.
3/64″ (1.2 mm): Ideal for 0.125″–0.375″ (1/8″–3/8″). Common in industrial settings for boat building, truck bodies, and structural components. Provides good deposition without excessive heat on thicker sections.
1/16″ (1.6 mm): For material 0.250″ and above. Used on heavy plate where high deposition rates and deep penetration are needed. Demands machines with sufficient amperage capacity (typically 200+ amps).
Parameter Ranges by Wire Size (100% Argon Shielding)
Use these starting points and adjust for your specific alloy, joint preparation, and travel speed. Aluminum typically uses spray or pulsed spray transfer for best results.
0.030″ Wire:
- Thickness: Up to 1/8″
- Amperage: 60–175 A
- Voltage: 18–22 V
- Wire Feed Speed: 480–625 ipm
- Typical travel speed: Faster to control heat
0.035″ Wire:
- Thickness: 1/16″–1/4″
- Amperage: 70–185 A (up to 220 A with pulse)
- Voltage: 19–23 V
- Wire Feed Speed: 450–750 ipm
3/64″ (0.047″) Wire:
- Thickness: 1/8″–3/8″
- Amperage: 125–260 A
- Voltage: 21–24 V
- Wire Feed Speed: 330–500 ipm
1/16″ Wire:
- Thickness: 1/4″+
- Amperage: 170–300+ A
- Voltage: 22–25 V
- Wire Feed Speed: 250–450 ipm
Always match contact tip size to wire diameter (or one size larger for aluminum’s softness) and use a Teflon liner or spool gun for optimal feeding.
TIG Filler Rod Size Chart and Selection
TIG filler rods for aluminum come in cut lengths, typically 36″ long, with diameters from 1/16″ to 1/4″. Rod size influences how much filler you add per dip and heat control.
Recommended TIG Rod Diameters
- 1/16″ (1.6 mm): Thin sheet and precision work up to 1/8″ thickness. Allows fine control on butt joints and low-amperage AC TIG.
- 3/32″ (2.4 mm): Most common general-purpose size for 1/8″–1/4″ material. Balances deposition and control for structural and repair work.
- 1/8″ (3.2 mm): For thicker sections 1/4″ and above or when building up large fillets. Requires higher amperage and skilled puddle management.
- 3/16″–1/4″: Heavy plate and large repairs where maximum filler addition is needed.
TIG Current and Rod Size Matching (Approximate for AC TIG on 5XXX/6XXX alloys):
- 1/16″ rod: 60–100 A for thin material
- 3/32″ rod: 100–180 A
- 1/8″ rod: 150–250 A
- Larger rods: 200+ A with wider torch angles and preheating for heavy sections.
Use 4043 for general applications and castings (better fluidity, less cracking). Choose 5356 for higher strength and corrosion resistance in marine or structural work.
Alloy-Specific Wire and Rod Considerations
Different aluminum alloys demand specific fillers to avoid cracking, ensure corrosion resistance, and match strength.
ER4043 (Al-Si): Excellent fluidity, lower melting point. Preferred for 6XXX series, castings, and when appearance or ease of welding matters. Slightly less strong than 5XXX fillers.
ER5356 (Al-Mg): Higher tensile strength, better for 5XXX series and applications requiring ductility and corrosion resistance. Stiffer wire, easier to feed in MIG. Avoid on high-silicon castings due to cracking risk.
Other options: ER5183 for high-strength shipbuilding, ER4047 for brazing-like applications with even more silicon.
Always consult a full filler metal selection chart for dissimilar alloys, as some combinations require specific choices to prevent hot cracking.
Equipment and Setup Requirements by Wire Size
Larger wire diameters need more robust feeding systems. Aluminum wire is softer than steel, so:
- Use push-pull guns or spool guns for 0.030″–0.035″ to minimize feeding distance.
- Larger 1.2 mm+ wire tolerates standard guns better but still benefits from proper drive rolls (U-groove) and tension settings.
- Contact tips: Size exactly or one larger than wire diameter.
- Drive rolls: Avoid knurled rolls that can shave soft aluminum wire.
Welder output must support the amperage for the chosen wire and thickness. Pulsed MIG expands the usable range for thinner materials with any wire size.
Joint Preparation and Technique Adjustments
Wire size influences technique:
- Thin material/small wire: Faster travel speeds, smaller weave or stringer beads, tight fit-ups.
- Thick material/large wire: Slower travel, possible multi-pass, wider grooves for penetration.
- Preheat heavy aluminum sections (200–300°F) when using larger rods or wires to reduce thermal shock.
- Clean oxide layer thoroughly regardless of size—wire brushing or scraping immediately before welding.
Maintain a 10–15° push angle in MIG for best shielding and bead profile.
Common Parameter Troubleshooting by Wire Size
Feeding issues with small wires (0.030″): Increase drive roll pressure slightly, check for kinks, use shorter gun cables.
Lack of penetration with larger wires: Increase voltage slightly or switch to pulsed mode for better arc focus.
Excessive heat/distortion: Drop to smaller wire diameter or use pulsed spray to lower overall heat input while maintaining deposition.
Porosity: Ensure 100% argon (or Ar/He mix for thicker sections), proper gas flow (25–35 cfh), and clean base metal.
Advanced Applications and Hybrid Approaches
For very thin aluminum (<0.060″), consider pulsed MIG with 0.030″ wire or switch to AC TIG with 1/16″ rod for superior control. In production, larger wires on automated systems maximize travel speed on thick sections.
When repairing castings, match wire chemistry closely and use smaller diameters initially for root passes before capping with larger sizes for fill.
Decision-Making Summary for Aluminum Welding Wire Size
Match wire diameter first to material thickness, then refine by alloy, position, and available equipment. For most DIY and light professional work, 0.035″ MIG wire or 3/32″ TIG rod covers the widest range of jobs efficiently. Thicker structural work benefits from 3/64″ or 1/16″ MIG and 1/8″ TIG rods.
Pro-level insight: In high-performance applications like marine or aerospace, prioritize 5356 filler in the smallest viable diameter that achieves full penetration—this minimizes heat-affected zone degradation while maximizing as-welded strength and fatigue resistance.
Test parameters on scrap of the same alloy and thickness before committing to the final piece. Proper wire size selection turns aluminum from a challenging material into one that welds cleanly and reliably.
FAQ
What is the most common aluminum MIG welding wire size?
0.035″ (0.9 mm) serves as the go-to for general fabrication, balancing feedability, heat input, and versatility across 1/16″ to 1/4″ thicknesses.
Can I use 0.030″ wire for aluminum thicker than 1/8″?
It is possible but not ideal. You will need very high wire speeds that can cause instability and insufficient deposition. Move to 0.035″ or 3/64″ for better results.
What TIG filler rod size for 1/4″ aluminum plate?
3/32″ or 1/8″ rod works best, depending on your amperage output and whether you are doing single or multi-pass welds.
Does wire size affect shielding gas requirements?
No—the gas remains 100% argon (or argon-helium mixes for thicker material). However, larger wires and higher amperages may benefit from slightly higher flow rates for adequate coverage.
