Before relying on an epoxy repair, it’s important to understand how well does JB Weld hold under real-world conditions. While JB Weld is known for creating a strong bond on many metals, its performance depends on factors such as surface preparation, joint design, curing time, and the type of load the repair must withstand.
Assuming it can replace every welded joint can lead to premature failure, costly rework, or safety concerns, especially on structural or high-heat components.
For automotive, household, and light fabrication repairs, knowing the realistic strength and limitations of JB Weld helps you choose the right repair method for the job.
Understanding where this epoxy excels—and where conventional welding or mechanical fastening is the better option—will help you make more reliable, long-lasting repair decisions.

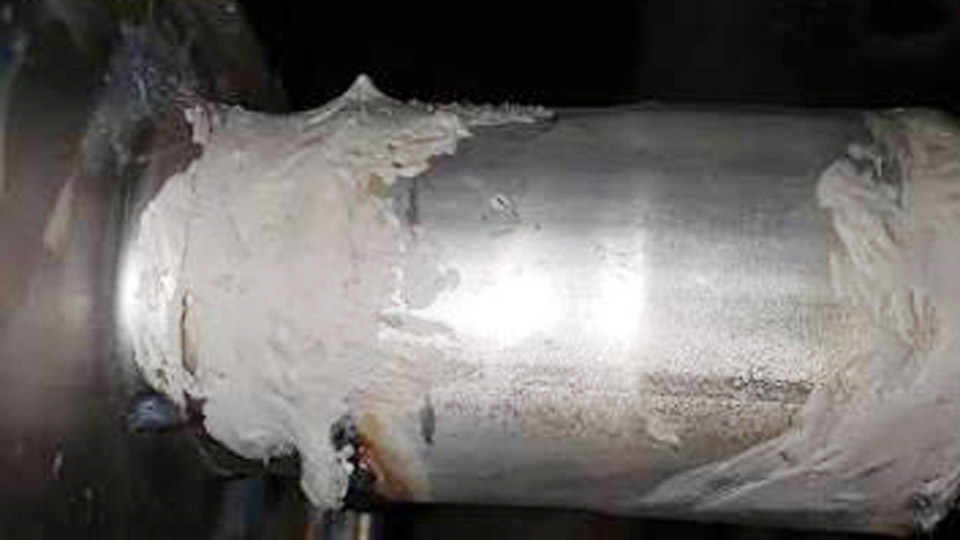

Image by DiecastRacingLeague
Actual Tensile and Shear Strength of Common JB Weld Formulas
Original Cold-Weld Epoxy Numbers
Current manufacturer data for the classic two-part Original JB Weld lists a tensile strength of 6220 PSI after full cure. Older packaging and third-party references commonly cited 3960–5020 PSI; the higher figure reflects updated formulation testing.
Set time is 4–6 hours at room temperature, with full cure requiring 15–24 hours. Continuous service temperature is listed at 550°F once cured. These values assume ideal surface preparation and pure tensile loading on properly mixed material.
SteelStik and High-Heat Variants Compared
SteelStik epoxy putty is rated at 4000 PSI tensile strength. It sets in five minutes and reaches usable hardness in one hour, allowing drilling and tapping much sooner than the Original. Temperature limit is 350°F.
HighHeat putty carries a similar 4000 PSI rating with continuous exposure tolerance of 450°F and intermittent peaks near 500°F.
The HighHeat syringe version is listed at 4730 PSI. ExtremeHeat paste is formulated for surface temperatures up to 2400°F but functions primarily as a high-temperature filler rather than a high-strength adhesive; its bond strength is substantially lower and it is not intended for structural joining.
Why Laboratory Tensile Ratings Overstate Real Joint Performance
Tensile strength measures pure pull-apart force on a carefully prepared specimen. In practice most repairs experience shear, cleavage, or peel. Epoxy joints perform best in shear; peel and cleavage loads concentrate stress at the bond edge and reduce effective capacity dramatically.
A 1-inch overlap lap joint can carry far more load than an edge-to-edge butt joint of the same cross-section. Vibration and cyclic loading further reduce long-term capacity because epoxy is more brittle than a fusion weld and does not redistribute stress the same way.
Surface Preparation That Determines Whether the Bond Holds
Cleaning and Degreasing Requirements
Any residual oil, coolant, or cutting fluid prevents full wetting of the metal surface. Degrease with a solvent that leaves no residue, then scrub with detergent and rinse. On aluminum, remove oxide immediately before application; the oxide layer reforms quickly and weakens adhesion.
Mechanical Abrasion and Keying
Coarse sandpaper, a file, or abrasive blasting creates the microscopic roughness the epoxy needs to grip. Smooth or polished surfaces yield lower shear values even when chemically clean. On cast iron or porous materials, open the pores by grinding so the epoxy can penetrate rather than sit on the surface.
Fit-Up and Gap Control
JB Weld fills gaps, but strength drops as the bond line thickens beyond approximately 0.005–0.020 inch for the liquid versions. Putty sticks tolerate larger voids but still require intimate contact for maximum load transfer. Clamping or mechanical support during the set period prevents movement that creates internal voids.
Load Types JB Weld Handles Reliably Versus Loads That Cause Failure
Static Shear and Compression Applications
Repairs that keep the joint in shear or pure compression—such as sealing a non-pressurized housing, rebuilding a worn shaft diameter for a press-fit bushing, or filling a casting void—routinely stay intact for years when surface prep is correct. The 4000–6200 PSI range provides adequate margin for many non-critical static loads.
Vibration, Impact, and Cyclic Stress Limitations
High-cycle vibration (engine mounts, rotating machinery, vehicle chassis) induces micro-cracking at the bond line. Epoxy lacks the ductility of a weld or the energy absorption of a mechanical fastener.
Impact loads create shock waves that exceed the local tensile capacity even when the average stress is low. In these cases the bond often separates cleanly from the metal rather than failing through the epoxy itself.
Pressure and Fluid Containment Boundaries
Original and SteelStik formulations resist oil, water, and many fuels once fully cured. They are not rated as pressure-vessel materials. Low-pressure sealing (radiator tanks, non-structural fluid reservoirs) is common; high-pressure or safety-critical containment is outside their design envelope.
Temperature Effects on Bond Strength and Long-Term Hold
Room-Temperature Cure Versus Service Temperature
Full mechanical properties develop only after the 15–24 hour room-temperature cure (or accelerated heat cure within the product limits). Applying load or elevating temperature before full cure permanently reduces strength. Once cured, continuous exposure near the rated maximum softens the polymer and lowers shear capacity.
High-Heat Product Selection Criteria
For exhaust components, manifolds, or parts that see sustained temperatures above 350°F, the HighHeat or ExtremeHeat lines become necessary. Even then, the repair remains a surface treatment or crack filler; it does not restore the original metal’s structural continuity under thermal cycling. Differential expansion between epoxy and metal can initiate edge cracks over repeated heat cycles.
Cold-Weather Application Constraints
Curing slows dramatically below 50°F. At near-freezing temperatures the reaction may stall, leaving a soft, under-strength bond. Warming the parts and the mixed epoxy, or using a controlled heat source after application, restores normal cure kinetics without exceeding the product’s maximum temperature during the process.
Practical Decision Framework: When JB Weld Is the Correct Choice
Non-Structural Metal Repairs
Stripped threads that will later receive a helicoil or oversized fastener, cosmetic reconstruction of a broken casting, or temporary sealing of a low-stress leak are appropriate uses. The ability to machine, drill, and paint the cured material expands repair options without heat distortion.
Situations That Require Fusion Welding or Mechanical Fastening
Any joint that carries primary structural load, experiences continuous vibration, or must retain full strength at elevated temperature belongs in the welding or bolting category. JB Weld cannot replace a properly executed fillet or groove weld on load-bearing members. Attempting to do so simply postpones the correct repair and risks secondary damage when the bond releases.
Hybrid Approaches That Extend Service Life
Combining a thin JB Weld layer with mechanical reinforcement—screws, pins, or a metal patch plate—often outperforms either method alone. The epoxy seals and distributes load while the fasteners carry the primary tension or shear. This technique is common on thin sheet metal and aluminum housings where welding would warp the part.
FAQ
Does JB Weld Hold as Strong as a Real Weld?
No. Even the highest-rated JB Weld formulas remain far below the tensile and shear strength of a properly executed fusion weld on steel or aluminum. A weld creates continuous metallic structure; JB Weld creates an adhesive interface limited by the polymer’s properties and surface adhesion.
How Long Does JB Weld Need to Cure Before Full Strength?
Original formula reaches handling strength in 4–6 hours and full rated strength after 15–24 hours at room temperature. Accelerating with moderate heat (within product limits) shortens the timeline, but the part should not see service load until the full cure window has passed.
Can JB Weld Be Used on Exhaust or High-Heat Engine Parts?
Only the HighHeat or ExtremeHeat versions are formulated for those temperatures. Standard Original and SteelStik will soften or fail above their respective limits. Even the high-temperature products function best as crack fillers or surface seals, not as primary structural repairs under thermal cycling.
Will JB Weld Hold Under Continuous Vibration?
Long-term vibration commonly leads to bond-line fatigue. Static or low-cycle applications succeed far more often. For continuous vibration, mechanical fastening or welding remains the more reliable solution.
