Running out of argon halfway through a critical stainless root pass or discovering a 125 CF cylinder lasted half as long as expected forces expensive delays and incomplete joints. Knowing how to calculate argon gas consumption for welding turns that uncertainty into predictable planning.
Accurate numbers let you size cylinders correctly, budget jobs, and avoid porosity from depleted flow or turbulence from excess.
The calculation rests on measured flow rate multiplied by actual gas-on time, adjusted for pre-flow, post-flow, and real duty cycle. Get those inputs right and every tank lasts exactly as long as the math predicts.

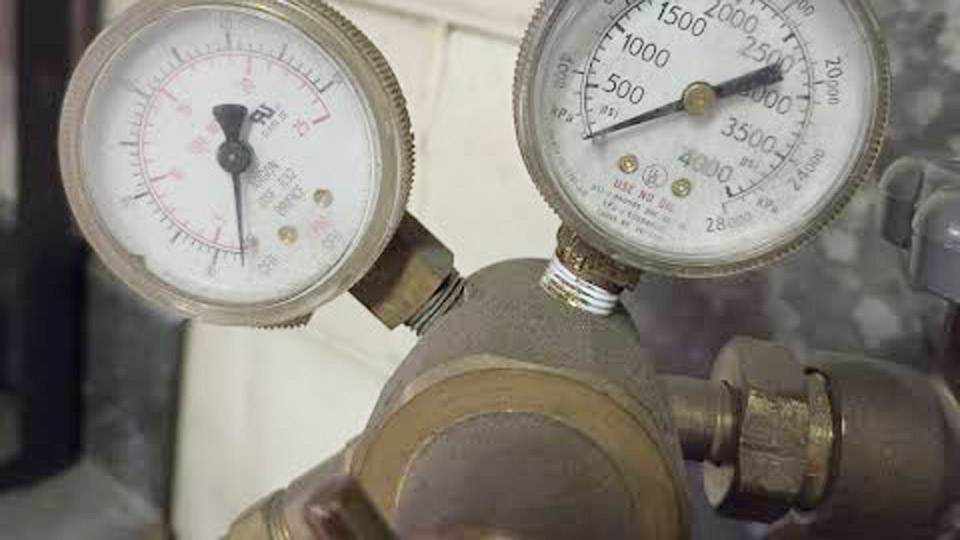

Image by r/Welding
Core Formula for Total Argon Volume Used
The single equation that governs every process is straightforward once gas-on time is defined correctly.
Basic Volume Equation
Total argon volume (cubic feet) = Flow rate (CFH) × Total gas-on time (hours).
In metric: Total volume (liters) = Flow rate (L/min) × Gas-on time (minutes).
Flow rate is the reading on a calibrated flowmeter while gas is moving through the torch or gun. Gas-on time is not clock time in the shop; it is the sum of arc time plus every second the solenoid or valve remains open.
Adjusting for Pre-Flow and Post-Flow
Pre-flow typically runs 0.5–1.0 second to purge air from the torch before the arc starts. Post-flow protects the tungsten and solidifying puddle; a practical baseline is 1 second of post-flow for every 10 amps of welding current (100 A ≈ 10 s).
Adjusted gas-on time (hours) = Arc time + [(Pre-flow + Post-flow seconds per cycle) × Number of starts] / 3600.
A single 18-inch aluminum TIG weld at 12 ipm travel speed produces 0.025 hour of arc time. With one start, 1 s pre-flow and 10 s post-flow, total gas-on time rises to approximately 0.028 hour. At 15 CFH the weld consumes 0.42 cubic feet.
Selecting the Correct Flow Rate Before Any Calculation
Flow rate is the largest variable under operator control and must match process, cup or nozzle size, and ambient conditions.
TIG (GTAW) Flow Rates by Cup Size
A reliable starting rule is cup size × 2 in CFH for still air.
| Cup Size | Baseline Flow (CFH) | Typical Range (CFH) | Common Use |
|---|---|---|---|
| #5 | 10 | 10–15 | Thin steel, tight access |
| #6–#7 | 12–14 | 12–18 | General steel & stainless |
| #8 | 16 | 15–20 | Higher amperage, aluminum |
| #10–#12 | 20–24 | 20–35 | Heavy sections, gas-lens setups |
Gas lenses allow 20–30 % lower flow while maintaining laminar coverage. Above 200 A, increase flow 15–25 % to counteract stronger convection currents around the puddle.
MIG (GMAW) Flow Rates by Material and Transfer Mode
Indoor short-circuit or globular transfer on mild steel with C25 mix usually runs 18–25 CFH. Spray transfer or aluminum with pure argon commonly needs 25–35 CFH. Outdoor or drafty conditions require an additional 5–10 CFH or a wind screen. Excess flow creates turbulence that pulls air into the shield and produces the same porosity as insufficient flow.
Calculating Cylinder Duration from Usable Volume
Rated cylinder capacity is not fully usable. High-pressure cylinders (typically 2015–2400 psi full) retain residual pressure of 100–500 psi before the regulator can no longer maintain set flow.
Usable Volume Formula
Usable volume (cu ft) = Rated capacity × (Full pressure – Residual pressure) / Full pressure.
An 80 CF cylinder at 2200 psi full and 500 psi residual yields 62 CF usable.
Cylinder duration (hours of continuous flow) = Usable volume / Flow rate (CFH).
At 20 CFH the same 80 CF cylinder delivers roughly 3.1 hours of continuous gas-on time.
Practical Duration Table for Common Shop Cylinders
| Cylinder Size | Usable Approx. | 15 CFH | 20 CFH | 25 CFH | 30 CFH |
|---|---|---|---|---|---|
| 40 CF | 30–32 CF | 2.0–2.1 h | 1.5–1.6 h | 1.2–1.3 h | 1.0–1.1 h |
| 80 CF | 60–65 CF | 4.0–4.3 h | 3.0–3.3 h | 2.4–2.6 h | 2.0–2.2 h |
| 125 CF | 95–105 CF | 6.3–7.0 h | 4.8–5.3 h | 3.8–4.2 h | 3.2–3.5 h |
Real shop duty cycles are 30–75 % arc-on time, so actual calendar time per cylinder is longer than the continuous figures.
Accounting for Real Job Variables That Change Consumption
Arc time alone understates usage on multi-start work and overstates it on long continuous seams.
Estimating Arc Time from Joint Length and Travel Speed
Arc time (hours) = Total weld length (inches) / Travel speed (ipm) / 60.
A 10-foot (120-inch) fillet at 10 ipm requires 0.2 hour of pure arc time. Add 10–20 % for tacks, stops, and repositioning on complex fabrications. Production MIG at 75 % duty cycle multiplies hourly flow by 0.75 to obtain actual hourly consumption.
Pipe Purging and Backing-Gas Volume
Internal purge volume equals the internal cross-sectional area times length. Convert cubic inches to cubic feet (divide by 1728) and add the volume required to displace air several times before welding begins.
A 6-inch schedule-40 pipe 10 feet long needs several cubic feet of argon simply to establish an oxygen-free interior before the root pass starts.
Converting Between Units and Tracking Actual Shop Usage
Flowmeters may read CFH or L/min; cylinders are sold in cubic feet or liters of water capacity at pressure.
Unit Conversion Factors
1 CFH ≈ 0.472 L/min.
1 cubic foot ≈ 28.3 liters.
When only cylinder pressure is known, remaining gas volume scales roughly with pressure ratio once temperature is stable. Recording start and end pressures over a measured gas-on period yields an empirical consumption rate that automatically includes leaks and valve inefficiencies.
Cost Projection from Volume
Multiply calculated cubic feet by local cost per cubic foot (commonly $0.30–$0.50 for pure argon). Add cylinder rental or demurrage if applicable. Production shops often track gas-to-wire ratios (typically 4–5 CF of gas per pound of 0.045-inch wire) as a secondary cross-check against pure time-based calculations.
Wrapping Up
Selecting the correct flow rate first, then measuring or estimating true gas-on time, produces consumption figures accurate enough for cylinder sizing and job costing. Once those two numbers are locked, the remaining arithmetic is simple multiplication.
Advanced operators further reduce waste by matching post-flow exactly to amperage, employing gas lenses on TIG, and installing surge-limiting devices on MIG guns that cut the initial high-pressure blast that otherwise wastes several cubic feet at every trigger pull.
FAQs
How much argon does a typical TIG weld use?
A 30-second TIG weld at 15 CFH consumes roughly 0.125 cubic feet, or about 3.5 liters. Include pre- and post-flow for the full figure.
How long will an 80 CF argon cylinder last at 20 CFH?
Approximately 3–4 hours of continuous gas-on time after allowing for residual pressure. Real shop duty cycle stretches calendar time to a full day or more for intermittent TIG work.
What is the correct argon flow rate for MIG mild steel?
Start at 20–25 CFH indoors with C25 mix. Raise 5–10 CFH for outdoor drafts or spray transfer; lower slightly for thin-gauge short-circuit work.
Does higher flow rate always give better shielding?
No. Excess flow creates turbulence that entrains air and causes porosity identical to insufficient flow. Stay inside the laminar range for the cup or nozzle in use.
