Learning how to weld aluminum without a welder is useful when traditional welding equipment is unavailable or the repair doesn’t justify the cost of a dedicated machine.
However, aluminum is difficult to join because its oxide layer melts at a much higher temperature than the base metal, making weak bonds, distortion, or joint failure more likely if the wrong method is used.
Understanding the limitations of welding alternatives is just as important as knowing when they are appropriate. Whether you’re repairing a small aluminum part, completing a temporary field fix, or exploring low-cost joining techniques, selecting the right process can improve joint strength and reduce unnecessary rework.
I’ill explain the practical methods that can be used to join aluminum without a conventional welder, along with the situations where each approach delivers reliable results.

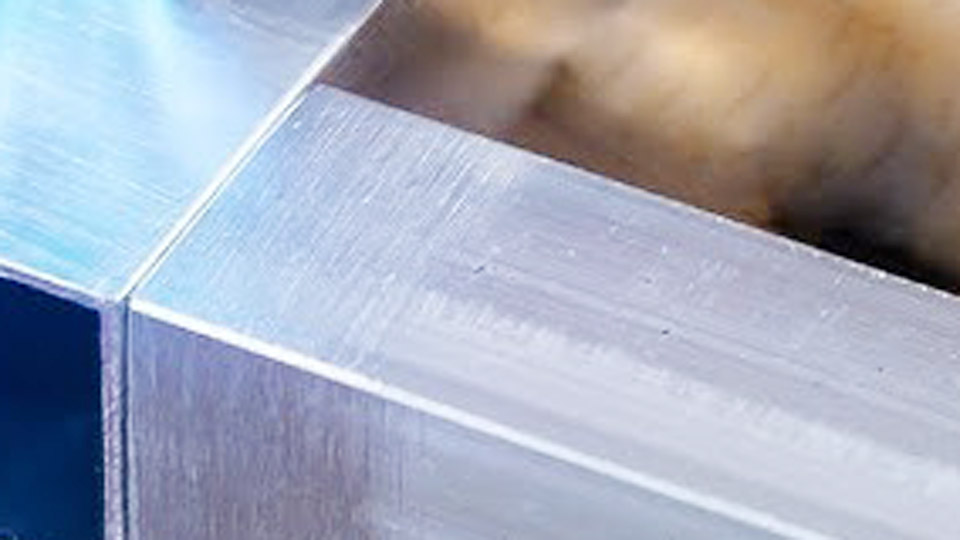

Image by @John_Malecki
Understanding Aluminum Joining Challenges
Aluminum melts at approximately 1,220°F (660°C), but its oxide layer melts much higher, around 3,700°F. This discrepancy causes poor fusion in standard processes without specialized equipment.
Without a welder, focus shifts to processes that either avoid melting the base metal entirely or use controlled lower-temperature fillers. Brazing and soldering create metallurgical bonds via capillary action or adhesion, while mechanical methods provide removable or high-shear strength without heat.
Key decision factors include material thickness, alloy type (e.g., 3003 or 6061 series braze well; high-magnesium 5xxx series are more difficult), joint geometry, and service conditions like temperature, vibration, or corrosion exposure.
Alloy Compatibility for Non-Welder Methods
Most wrought alloys in the 1xxx, 3xxx, and many 6xxx series respond well to brazing. Avoid high-Mg content alloys (>2%) for flame brazing due to oxide issues. Test on scrap first, as cast aluminum varies widely in silicon and other elements.
Low-temperature fillers (around 700–1,100°F) suit thin sections; higher-temperature options build strength in thicker stock.
Primary Method: Torch Brazing Aluminum with Filler Rods
Brazing is the closest practical equivalent to welding aluminum without a welder. It uses a propane or MAPP torch and aluminum brazing rods (typically Al-Si alloys like 4047 with ~12% silicon) that melt at 575–585°C (1,067–1,085°F), well below the base metal’s melting point.
Joint Preparation and Design
Design for lap or fillet joints with 1/8″ to 1/4″ overlap minimum for shear strength. Butt joints are weaker in brazing. Clean surfaces mechanically with a stainless steel wire brush or dedicated aluminum cleaner, followed by acetone degreasing.
Remove oxide immediately before heating—oxide reforms in minutes. Chamfer edges for better filler flow and strength. Fit-up must be tight (0.002–0.005″ gap ideal for capillary action).
Torch Selection and Heat Control
Propane torches work for light duty; MAPP or oxy-acetylene provides hotter, more controlled flames for thicker material. Heat the base metal evenly, not the rod. Watch for the rod to flow on contact when the joint reaches working temperature (typically 720–1,120°F depending on rod). Move the torch in a circular or back-and-forth pattern to avoid localized overheating and base metal melting.
Application Technique
Clamp pieces securely. Preheat broadly, then focus on the joint. Touch the rod to the heated aluminum—it should melt and wick into the gap. Build multiple passes for thicker fillets.
Allow slow cooling to minimize stress. Post-braze, clean flux residue with hot water or a wire brush if using flux-cored or flux-applied rods. Some low-temp rods are fluxless.
Strength: Well-executed lap joints can reach 20,000–33,000 psi tensile, sufficient for many non-structural applications. Performance drops near the filler’s melting point.
Soldering Aluminum for Low-Heat Applications
Soldering uses even lower temperatures (often 350–700°F) with specialized aluminum solders. Ideal for thin sheets, electronics, or heat-sensitive repairs like radiators or gutters. A standard soldering iron or low-output torch suffices.
Surface prep is identical but more critical due to lower heat for oxide disruption. Some products include flux that activates at temperature. Limits include lower strength and heat resistance compared to brazing.
When Soldering Beats Brazing
Choose soldering for sections under 1/16″ thick or when distortion must be near zero. Filler flow is excellent but shear strength is lower. Test peel and vibration resistance for your project.
Mechanical Joining Methods Without Heat
Riveting for Structural Integrity
Pop rivets or solid rivets excel for sheet and structural aluminum. Drill precise holes, deburr, and use aluminum or compatible rivets to avoid galvanic corrosion.
Combine with structural adhesive for hybrid strength. Riveting handles vibration well and allows disassembly in some designs. Strength depends on rivet diameter, spacing, and material—calculate shear loads accordingly.
Bolting and Fasteners
Use self-tapping screws, bolts with rivnuts, or corner connectors for aluminum extrusions and frames. Sleeves prevent crushing thin tubing. This method offers adjustability and high clamp loads without altering material properties.
Adhesive Bonding for Seamless Joints
Structural epoxies or specialized aluminum adhesives create strong, vibration-damping bonds. Roughen surfaces (80–120 grit), clean thoroughly, and apply per manufacturer cure times.
Best for non-critical loads or combined with mechanical fasteners. Modern formulations achieve high shear strength and corrosion resistance but perform poorly under sustained high heat or peel forces.
Comparing Methods: Decision Framework
Brazing — Highest heat-free metallurgical bond strength; good for repairs and visible joints.
Soldering — Lowest heat, easiest for thin/delicate work.
Riveting/Bolting — Best for disassembly, high shear, or thick sections.
Adhesives — Clean appearance, stress distribution, but temperature-limited.
Consider service environment: brazed joints suit moderate temperatures; mechanical methods handle higher loads. Always prototype and test under expected conditions.
Advanced Considerations for Professionals and Hobbyists
For production or critical parts, evaluate post-process heat treatment if using heat-treatable alloys—brazing anneals material. Corrosion protection (anodizing, coatings) extends joint life, especially with dissimilar metals.
Practice on scrap to master heat control; temperature indicators in some fluxes help. For complex assemblies, furnace or vacuum brazing offers uniformity but requires equipment beyond basic “no welder” setups.
In real-world fabrication, hybrid approaches often win—brazed fillets reinforced with rivets, for example. Match the method to the alloy, thickness, and load profile rather than defaulting to one technique.
Performance Takeaway
Brazing with proper lap joint design and clean technique frequently outperforms expectations for DIY aluminum projects, delivering durable results comparable to entry-level welds in many non-structural uses.
The advanced insight is recognizing that joint geometry and surface preparation often dictate success more than the heat source itself—optimize these first for pro-level reliability.
FAQ
Can brazed aluminum joints handle structural loads?
Yes, in shear with adequate overlap, but avoid primary tensile butt joints without reinforcement. Test for your specific application.
What torch works best for aluminum brazing at home?
MAPP gas or propane with a good tip provides sufficient control for most repairs; oxy-acetylene offers more precision on thicker stock.
How long do aluminum brazed joints last outdoors?
With proper cleaning and corrosion protection (paint or anodizing), they perform well for years. Unprotected joints risk galvanic issues in wet environments.
Is it possible to braze aluminum to other metals without a welder?
Yes, using compatible Zn-Al or specialized fillers for copper, brass, or steel transitions, but account for expansion differences and potential corrosion.
