Joining dissimilar metals requires more than simply heating them together, and brazing copper to stainless steel is a good example. Because copper and stainless steel have different thermal properties and surface characteristics, choosing the correct filler metal, flux, and heating technique is essential for producing a strong, leak-free joint.
Poor temperature control or improper material selection can result in weak bonds, oxidation, excessive filler flow, or joint failure under pressure or vibration.
These challenges are common in plumbing, HVAC, refrigeration, and industrial fabrication, where reliable connections are critical for long-term performance.
Understanding the fundamentals of brazing dissimilar metals will help you create durable joints, minimize defects, and achieve consistent results whether you’re making a new assembly or repairing an existing system.

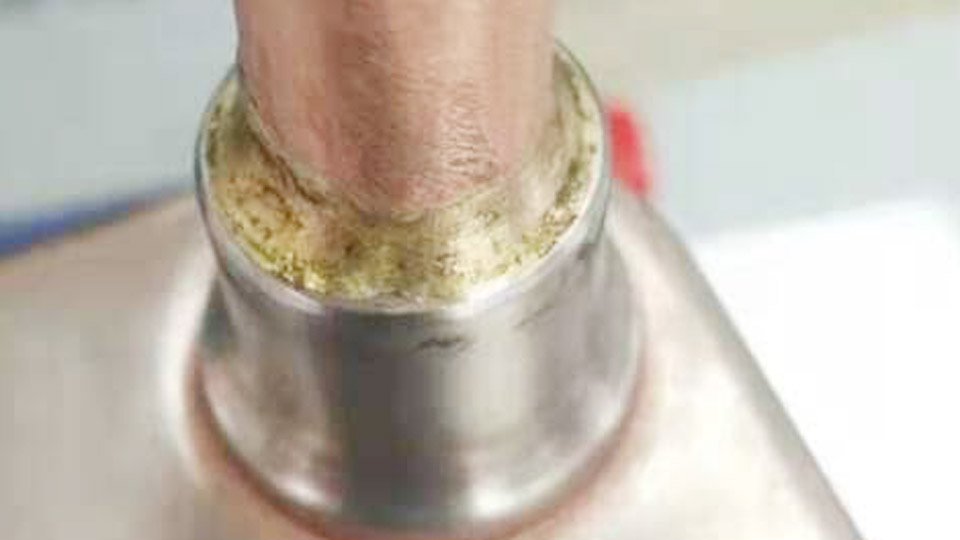

Image by focoinduction
Why Brazing Beats Welding for This Dissimilar Metal Pair
Metallurgical Compatibility Issues in Fusion Welding
Direct fusion welding of copper to stainless steel creates brittle intermetallic compounds and cracking risks due to mismatched melting points—copper at approximately 1,983°F (1,085°C) versus stainless steels often exceeding 2,500°F (1,370°C).
Dilution in the weld pool exacerbates problems, especially in 300-series stainless where chromium and nickel interact poorly with molten copper. Brazing avoids melting the base metals, using a filler that forms a metallurgical bond through capillary action and diffusion while preserving each material’s properties.
Thermal and Mechanical Advantages
Brazed joints accommodate differential expansion better under thermal cycling, common in HVAC or process piping. The lower heat input minimizes distortion in thin copper sections and preserves stainless steel’s corrosion resistance by limiting sensitization in the heat-affected zone.
Joint strengths often exceed the weaker base metal when properly executed, with good ductility for vibration resistance.
Application-Specific Performance
In sanitary or marine environments, brazed copper-stainless assemblies resist galvanic corrosion better when using nickel-bearing fillers. They also handle pressure and temperature swings without the distortion typical of welded joints on thin tubing.
Joint Design Decisions That Determine Success
Lap vs. Butt Joint Configurations
Lap joints or sleeve fittings outperform butt joints for brazing copper to stainless steel. Overlap provides more surface area for capillary flow and shear strength. For tubing, a socket or sleeve joint with 1.5–3 times the wall thickness overlap works well. Butt joints require tighter tolerances and offer lower strength under peel or bending loads.
Optimal Joint Clearance for Capillary Action
Target 0.002–0.005 inches (0.05–0.13 mm) clearance at brazing temperature. Too tight (<0.001″) restricts filler flow; too loose (>0.005″) reduces capillary action and shear strength.
Account for thermal expansion—copper expands more than stainless, so room-temperature fit-up may need slight adjustment. Use feeler gauges or test assemblies to verify.
Edge Preparation and Fillet Considerations
Bevel or chamfer edges lightly for better access and fillet formation. A concave fillet distributes stress effectively. For high-pressure applications, design for full penetration visible on both sides. Avoid sharp corners that trap flux or create stress risers.
Filler Metals and Flux Selection for Copper-Stainless Joints
Silver-Based Alloys (BAg Series) Performance Data
High-silver content alloys excel here. BAg-7 (56% Ag, melting range ~1,145–1,205°F / 618–652°C) offers excellent flow and lower temperatures that protect copper.
BAg-5 (45% Ag) or BAg-24 (50% Ag with 2% Ni) provide good strength and improved corrosion resistance on stainless, particularly 300-series. Nickel additions (e.g., in BAg-3 or BAg-24) combat interfacial corrosion by forming a protective layer.
Common BAg Alloys Comparison:
| Alloy | Silver % | Key Additions | Solidus/Liquidus (°F) | Best For | Notes |
|---|---|---|---|---|---|
| BAg-7 | 56 | Sn, Zn | 1,145 / 1,205 | General, thin sections | Excellent flow, lower heat |
| BAg-5 | 45 | Cu, Zn | ~1,370 / 1,500 | General purpose | Balanced cost/performance |
| BAg-24 | 50 | Ni, Zn | ~1,220 / 1,305 | Stainless, corrosion | Nickel for interface protection |
| BAg-3 | 50 | Ni | ~1,170 / 1,270 | Carbides, stainless | Higher strength |
Avoid BCuP (copper-phosphorus) alloys for stainless without extensive testing—they wet copper well but struggle with chromium oxides.
Flux Types and Activity Levels
Use active, stainless-specific fluxes (boric acid or fluoride-modified) to break down tenacious chromium oxides. Paste fluxes like Harris Stay-Clean or black flux provide good coverage. Apply liberally to both surfaces and the rod.
Flux activity peaks at temperature; overheating depletes it quickly. For vacuum or controlled atmosphere, fluxless options exist but require clean surfaces and higher equipment investment.
When to Consider Nickel-Enhanced or Specialty Fillers
For food-grade or ammonia environments, select nickel-bearing or copper-free alloys to minimize corrosion risks. High-temperature service may need BAg-13 or similar with adjusted ranges. Always match filler solidus/liquidus to the lowest melting base metal constraints.
Heating Methods and Temperature Control Strategies
Torch Selection and Flame Adjustment
Oxy-acetylene with a neutral or slightly reducing flame gives the best control for most shop work. Propane or MAPP torches suffice for smaller jobs but demand more skill due to lower heat output.
Bias heat toward the stainless steel side—copper conducts heat rapidly and can melt locally if overheated. Aim for a dull red on stainless (~1,100–1,300°F / 593–704°C) while monitoring copper to avoid exceeding 1,500°F.
Induction and Furnace Brazing Advantages
Induction heating excels for production or precise local heating, minimizing overall heat input and oxidation. Furnace brazing in controlled atmospheres (e.g., hydrogen or vacuum) eliminates flux needs and produces clean joints but requires fixturing and is less practical for field repairs. Preheat larger assemblies uniformly to reduce thermal gradients.
Real-Time Temperature Indicators
Watch flux behavior: it bubbles, then becomes clear and glassy at the right temperature. Filler rod should melt and flow instantly on contact without excessive puddling. Use tempilsticks or infrared pyrometers for critical work, targeting 50–100°F above the filler’s liquidus.
Surface Preparation and Assembly Best Practices
Mechanical and Chemical Cleaning Protocols
Clean both metals to bright, oxide-free surfaces immediately before brazing. Use stainless steel wire brushes or dedicated abrasives to prevent cross-contamination. Degrease with acetone or isopropyl alcohol.
For stainless, a light acid pickle (e.g., nitric or citric-based) removes stubborn oxides, followed by thorough rinsing and drying. Copper benefits from emery cloth or abrasive pads.
Fixturing and Pre-Assembly Techniques
Secure parts with clamps, weights, or fixtures that allow for expansion without shifting. Pre-tin the stainless surface for complex joints or poor wetting areas—apply a thin filler layer first, then re-flux and complete the joint. Ensure the assembly remains stable as filler flows.
Execution: Key Process Controls During Brazing
Focus heat application on achieving uniform temperature without localized overheating. Move the torch in a circular or back-and-forth pattern, keeping the inner cone off the metal. Introduce filler at the joint edge once flux indicates readiness; capillary action should draw it through.
Maintain heat briefly to ensure full flow, then remove the torch. For long seams, use a traveling technique with progressive heating.
Avoid overheating copper, which leads to excessive annealing and reduced strength, or underheating stainless, causing incomplete wetting.
Post-Brazing Operations and Quality Assurance
Controlled Cooling and Stress Management
Allow slow air cooling on insulating material like firebrick to minimize residual stresses from differential contraction. Quenching can work for small parts but risks cracking in larger or restrained assemblies. Slow cooling preserves joint integrity under cyclic service.
Flux Residue Removal Techniques
Remove flux immediately while warm using hot water, wire brushing, or mild acid solutions. Residual flux on stainless promotes pitting corrosion over time. Ultrasonic cleaning or pickling helps for intricate parts. Inspect for complete filler coverage and smooth fillets.
Inspection Methods for Critical Joints
Visual inspection checks for full penetration and concave fillets. Use dye penetrant testing for surface defects, pressure testing for leaks, or ultrasonic for internal voids in high-stakes applications. A properly brazed joint appears shiny and continuous without voids or porosity.
Common Failure Modes and Root Cause Analysis
Oxidation and Wetting Problems
Black scale or poor flow usually traces to insufficient flux, oxidizing flame, or delayed cleaning. Switch to a reducing flame or increase flux activity.
Cracking and Distortion
Rapid cooling, excessive heat input, or poor joint clearance cause cracks. Mitigate with balanced heating, proper fixturing, and post-braze stress relief if needed. Thin copper sections distort easily—use heat sinks or sequential brazing.
Interfacial Corrosion Risks
Galvanic or interface corrosion appears in moist or aggressive environments without nickel in the filler. Select appropriate BAg alloys and ensure post-cleaning. Avoid direct long-term contact in electrolytic solutions without insulation.
Porosity Sources
Trapped gases from dirty surfaces, moisture in flux, or incorrect flame settings create porosity. Dry all materials and adjust technique accordingly.
Equipment and Consumables Recommendations
Invest in a quality oxy-fuel setup with multiple tip sizes. Keep filler rods dry and organized. For frequent work, consider induction systems. Stock multiple flux types and high-silver rods—practice on scrap to dial in your process before critical jobs.
Scaling to Production or Complex Assemblies
For batch work, invest in fixturing jigs and automated heating where possible. Multi-joint assemblies benefit from sequential brazing starting from the heaviest mass. Test protocols should include thermal cycling and leak checks representative of service conditions.
Real-world application insight
Successful brazing copper to stainless steel comes down to mastering heat balance and material compatibility rather than speed. Prioritize nickel-bearing silver fillers for demanding corrosion environments, maintain strict 0.002–0.005″ clearances, and bias heat toward stainless while protecting copper from overheating.
This disciplined approach yields joints that outperform expectations in cyclic thermal and pressure service, often outlasting welded alternatives on dissimilar metals.
An advanced insight: pre-tinning difficult stainless surfaces before final assembly can dramatically improve wetting and reduce defects in production runs.
FAQ
What is the best filler metal for brazing copper to stainless steel?
High-silver alloys like BAg-7 or BAg-24 with nickel additions provide the best flow, strength, and corrosion resistance. Match the alloy to your specific temperature and environment requirements.
How do you prevent cracking in copper to stainless brazed joints?
Use proper joint clearance, even heating biased to stainless, slow controlled cooling, and compatible fillers. Avoid rapid temperature changes and excessive heat input on the copper.
Can you braze copper to stainless steel with propane torch?
Yes, for smaller parts using high-silver rods and aggressive flux. Oxy-acetylene offers better control for larger or thicker sections. Practice heat management carefully.
What flux works best for brazing copper to stainless steel?
Aggressive, stainless-grade fluxes containing fluorides or boric acid formulations handle chromium oxides effectively. Apply generously and clean residues promptly after brazing.
